EzRay 65kV HandHeld Intraoral X-Ray & Pretest

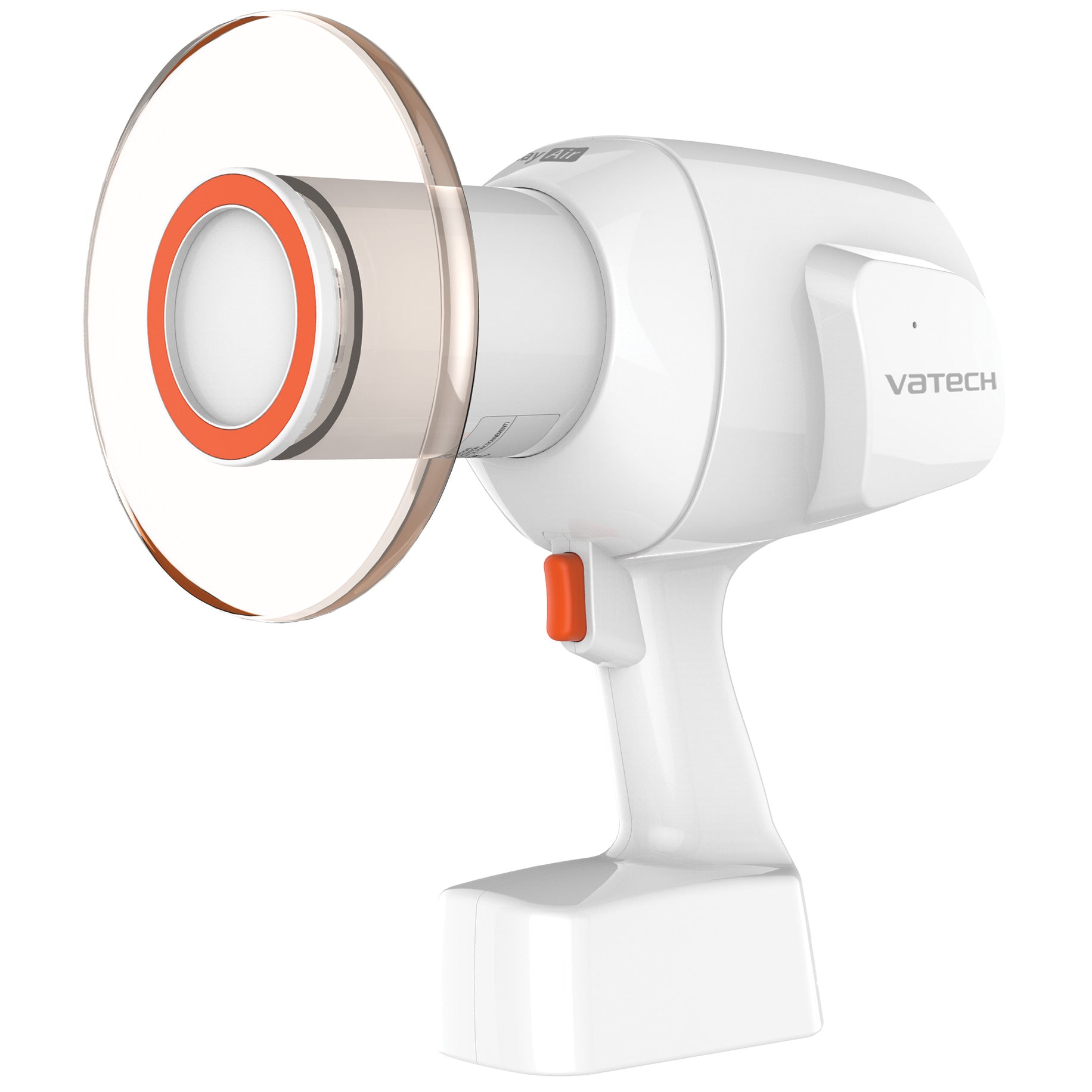

Vatech EzRay Air hand held intra-oral X-ray 65kV

EzRay Air, wireless portable intraoral X-ray system from Vatech, satisfies all primary dental diagnostic needs by creating stable and clear images at all times.

Tube current 2.5mA, Exposure times from 0.05 – 0.5 seconds, Focal spot 0.4mm, Focal distance 200mm, Total filtration Min 1.5mm Al, Collimator 60mm round or 30 x 40mm Rectangular as standard (Optional 20 x 30mm rectangular available), Weight 1.4kg (2.2lb)* without backscatter shield.

Unit dimensions with scatter shield L280mm x H300mm x W165mm

Critical examination & acceptance test will be required on installation see QWX100

• Lightweight - only 1.4kg - designed to protect operators wrist, arms and spine with a simple and hand-held design
• Superior image quality
• Focal spot of 0.4mm
• 65kVp for sharper images
• Smart positioning for automatic angle detection
• Smart dial for all settings
• Internal shielding
• External backscatter shielding
• Additional accessories including Rectangular Collimator for dose reduction and Neck and Hand strap
