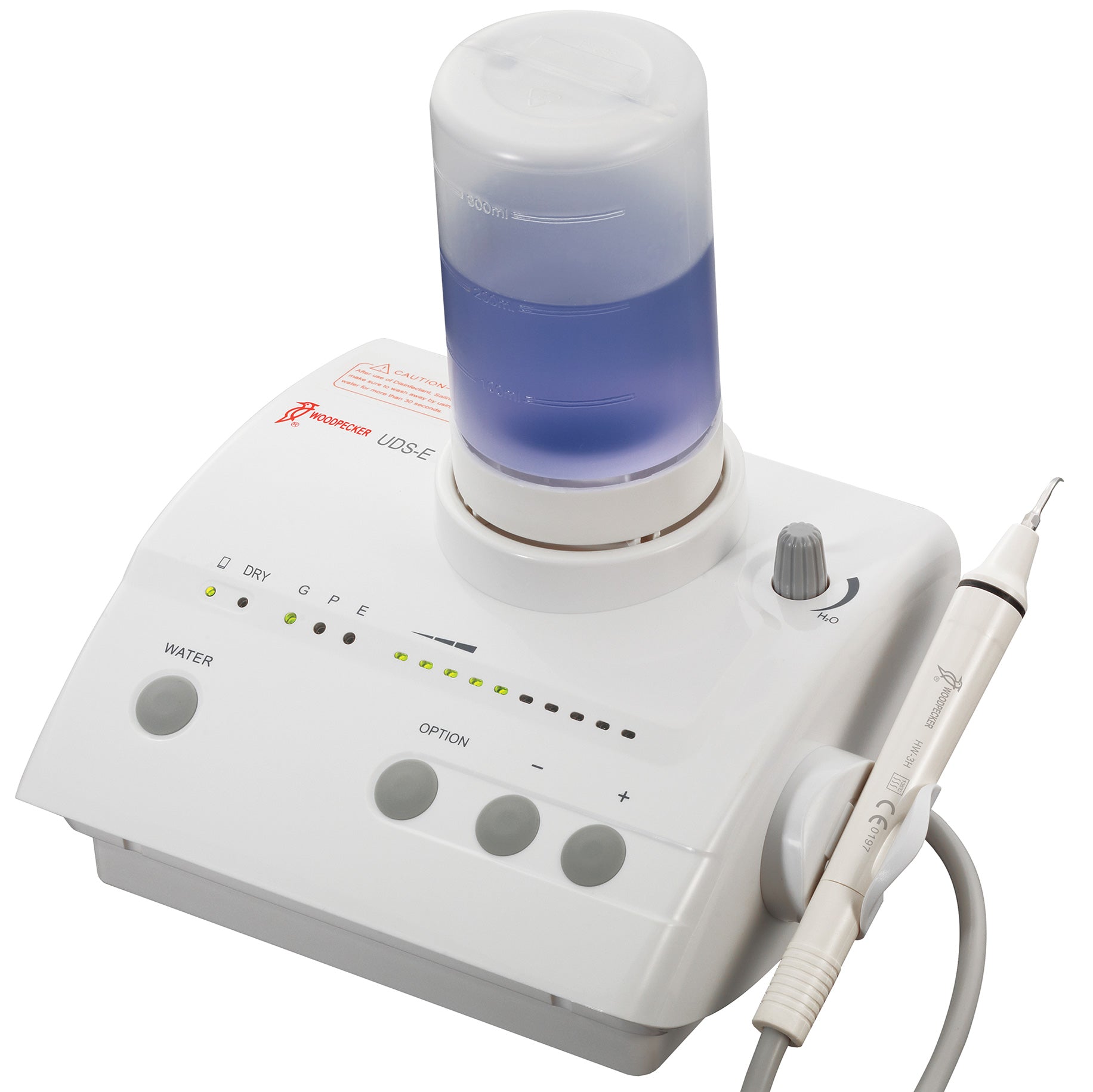

Woodpecker UDS-E Scaling Unit

The UDS-E is a four-function (scaling, perio, endo and auto-water supply) ultrasonic piezo scaler with a detachable handpiece which is autoclavable to a maximum temperature of 135°C and a maximum pressure of 0.22MPa.

The unit features automatic frequency tracking which ensures that it is always operating on the most efficient frequency for optimum performance. It also features a built in 350ml capacity water container, however there is also an adaptor for an external water source and a spare bottle.

Features:-

• Complete with 7 tips, torque wrench, tip holder and spare bottle
• Auto-water supply function
• Clinical fluids, such as hydrogen peroxide, chlorhexidine and sodium hypochlorite, etc., can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically
• PC controlled for easy operation and more efficient scaling
• Automatic frequency testing
• EMS compatible handpiece
• Scaling Frequency: Average 28000 - 29000Hz
• Perio Frequency: Average 28000 - 29000Hz
• Endo Frequency: Average 27000Hz

Specification:-

• Main Unit Input: 30 V DC 13A
• Output Power: 3W~20W
• Frequency: 28kHz ± 3kHz
• Water Container Capacity: 350ml
• Dimensions: W234mm x D193mm x H109mm
• Weight: 1.35Kg

UDS-E have a one year warranty.

Tubing requires regular cleaning.
