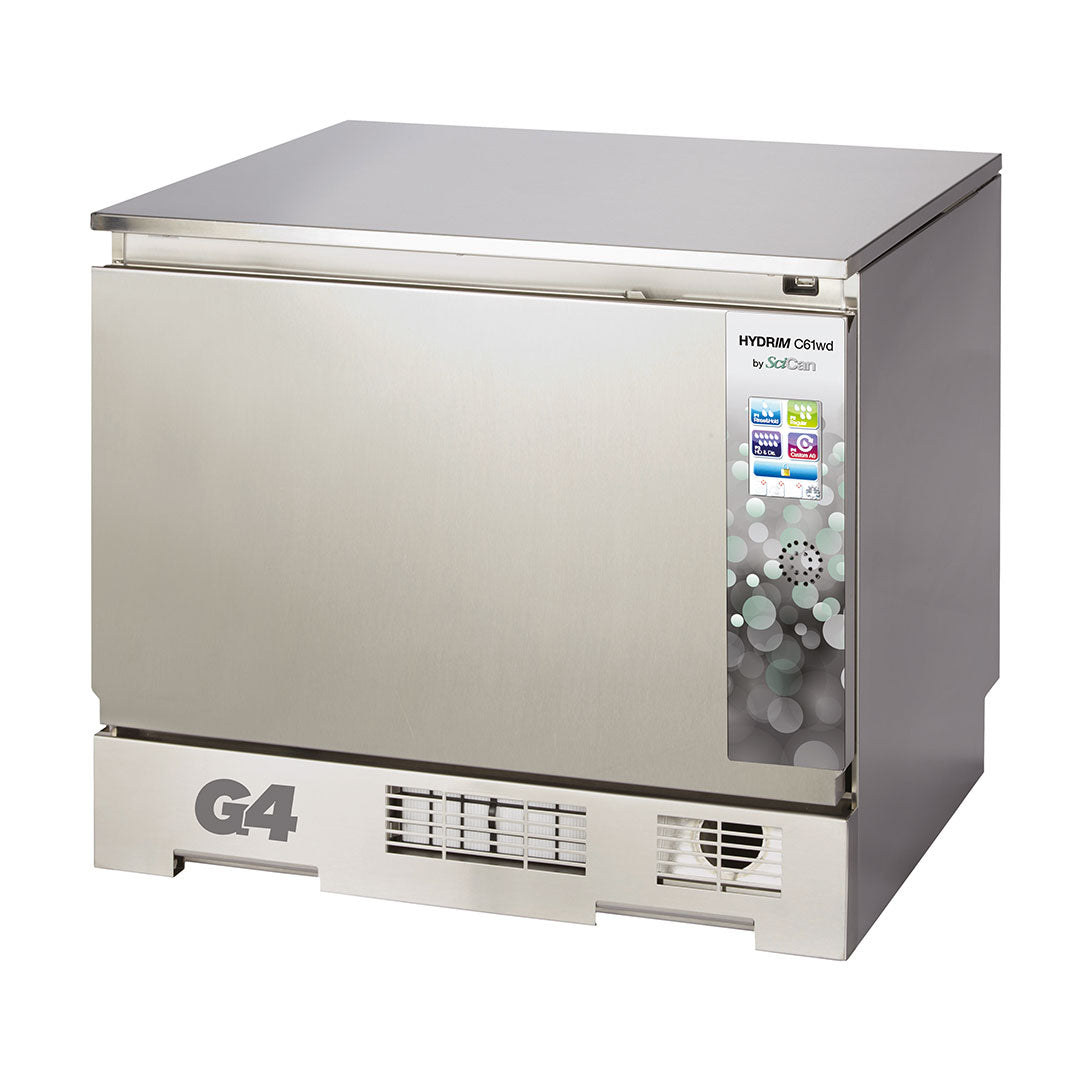

Hydrim C61WD G4 Washer Disinfector

Product Code : QHS200

Supplier Code : C61WD-D04

HYDRIM C61WD G4 ensures instruments are properly and consistently cleaned and disinfected before moving to the next step of instrument reprocessing, sterilization.

Efficient:-

HYDRIM C61WD G4 has a 6 full-size cassette capacity and can turnover 120 instruments in 60 minutes, start-to-dry.

• Can be mounted under the counter or as a counter top.
• HIPTM ULTRA cleaning solution is stored in the unit, no extra storage space required.
• Washer-Disinfectors have validated cycles to ensure repeatable performance.

Safe:-

Avoid the many steps involved with manual cleaning or using ultrasonic cleaners such as pre-soaking, scrubbing and drying instruments.

• HYDRIM G4 ensures that every set of instruments receive the same validated cleaning process by dosing the correct amount of detergent with each cycle.
• Active drying system allows instruments to immediately be transferred to the next step of instrument reprocessing, sterilization.

Smart:-

G4 Technology – Information at your fingertips

• Designed as a self-monitoring unit, network enabled G4 technology can connect and send cycle data to your smart devices or computer, providing easily accessible cycle information and service logs.
• G4 technology connects your HYDRIM to specialized technicians, which allows for remote support and minimizes unnecessary downtime.
• Large touch screen gives in-depth cycle info and allows users to view current operation

Package includes: Benchtop Washer Disinfector with Stainless Steel Door, 1 detergent dosing pump, steam condenser, electrically heated forced air drying with F5 filter grade (EN 779:2012 G3), soft touch HMI with LCD color display, cold water connection, RS232 port for printer connection, USB port. Standard 3 pin 13A plug 230V‚àø 50Hz CHAMBER HARDWARE NEEDS SPECIFIED SEPERATELY. SEE OPTIONS ON SCICAN MACHINE OPTIONS. For a typical set up which will split the chamber loading between clip trays and loose instruments see QHS204

Unit Size: (W x H x D) 598 x 520 x 526mm (23.5” x 20.5” x 20.7”)

Cycle Times*

• Rinse and Hold 5 mins
• Regular Wash + Dry‚Ć 26 mins + 10 mins
• Heavy Duty Wash + Dry 42 mins + 10 mins
• Weight\t44 kg / 97 lbs
• Electrical Rating 208-240V, 12A, 60 Hz
• Disinfection Cycle

Built in accordance to ISO15883-1 & -2

*Actual cycle times will vary with incoming water temperature and pressure. † Please note that this cycle DOES NOT provide disinfection. This option can only be activated by a technician.

The air filter for this unit can be ordered under DD code QZS054.
