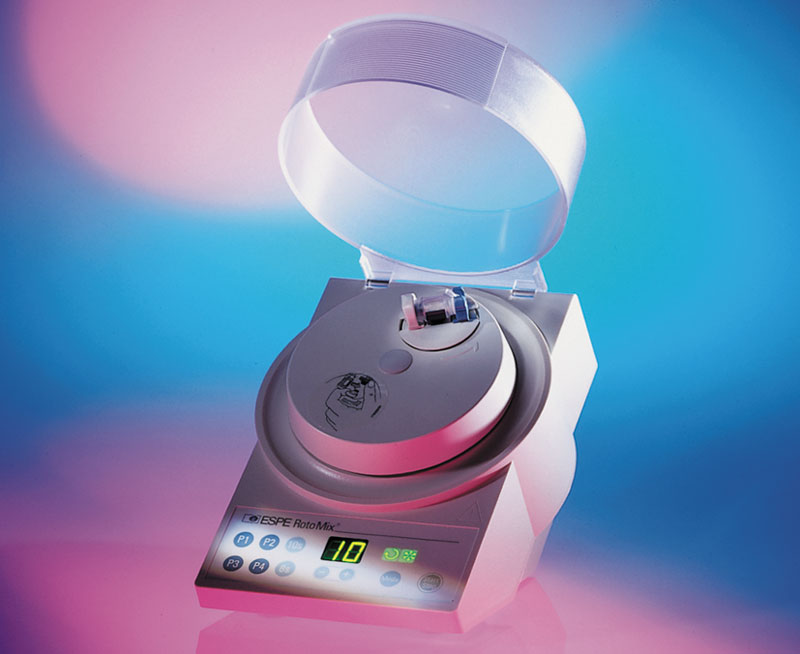

Rotomix Capsule Mixer

Product Code : QAE005

Supplier Code : 76301

The RotoMix Capsule Mixing Device delivers a completely homogenous mix with the rotation mixing principle.

\n
• Rotating platform with simultaneously counterrotating capsule holder produces the most complete mix
\n
• Automatic centrifugal cycle produces a denser mix and virtually void-free material
\n
• Mixing time reduced by 30% on average (compared with CapMix)
\n
• Easy loading/unloading of capsules
\n
• Extremely quiet operation
\n
• Touch control panel
\n

Technical data:

\n
• Drive unit: Ball-bearing motor with integrated self-resetting overheat cut-off
\n
• Operating mode: Short-term operation, 2 min On/ 5 min Pause (to prevent needless motor heating)
\n
• Controller: Microprocessor-controlled, high precision mixing time control by quartz timing mechanism
\n
• Capsule holder: Self-locking
\n
• Capsules: Diameter max.19 mm, total length max. 58 mm, length without tubes max. 38 mm, weight max. 6 g
\n
• Housing: Housing and protective cover consist of high impact-resistant plastics
\n
• Mixing speed: typically 2850 for 6 g-capsules
\n
• Centrifugation speed: typically 2950 for 6 g-capsules
\n
• Operating temperature: 18°C…40°C/64°F…104°F
\n
• Humidity: max. 80% at 31°C/88°F, max. 50% at 40°C/104°F
\n
• Main voltage: 120 V, 230 V, 50/60 Hz, for voltage setting refer to the rating plate
\n
• Power requirements: 390 VA
\n
• Fuses: 230 V: 2A time-lag fuse / 120 V: 3.2 A time-lag fuse
\n
• Dimensions: (W x H x D) 180 x 210 x 250 mm
\n
• Weight: 4000 g
\n

76301
