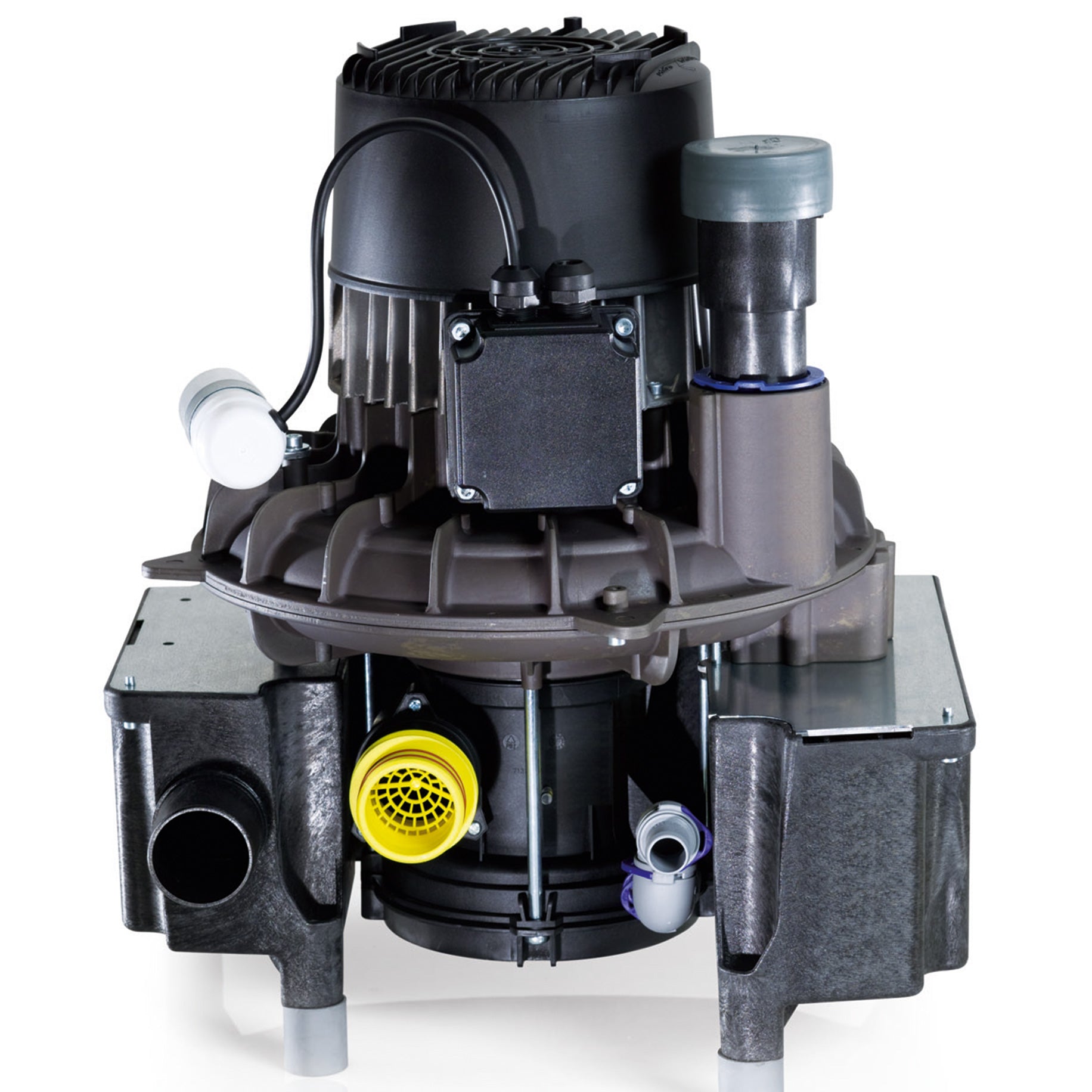

VS 600 Suction Motor

For two operators and three treatment rooms.

Operators= Number of treatment stations with simultaneous operation Rooms = Number of stations that can be connected with simultaneity factor 60%

• Voltage (V 1~/V 3~) 230/400
• Frequency (Hz) 50/ 50/60
• Current consumption (A) 5.0/ 1.8 - 4.0
• Power (kW) 1.1/ 1.1/1.4
• Speed (rpm) 2,850
• Cyclic duration factor (S1) 100 %
• Noise level without housing dB(A) approx. 63/approx. 63
• Noise level with housing dB(A) approx. 55/approx. 55
• Dimensions without housing (H x W x D cm) 50 x 42 x 41
• Dimensions with housing (H x W x D cm) 65 x 49 x 53
• Weight without housing (kg) 25
• Weight with housing (kg) 45
